SRC545 RC Drill Bit with 2 Flushing Holes 11.0kg-12.0kg Weight and 1 Year Warranty for Reverse Circulation Drilling

Large Image : SRC545 RC Drill Bit with 2 Flushing Holes 11.0kg-12.0kg Weight and 1 Year Warranty for Reverse Circulation Drilling

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$200

Contact Now

SRC545 RC Drill Bit with 2 Flushing Holes 11.0kg-12.0kg Weight and 1 Year Warranty for Reverse Circulation Drilling

Description

Weight:	11.0kg-12.0kg	Material:	Carburizedsteel
Diameter:	124mm-136mm	Size:	4 7/8''-5 3/8''
Flushing Holes:	2	Button Diameter:	8x14-10x14 Mm
Button Angle:	35°	Shroud Diameter:	122mm-134mm
Processing Type:	Forging	Air Pressure:	High Air Pressure
Formation:	Complicated Gravel Formation	Sample Recovery:	Up To 98%
Penetration Rate:	Fast	Piston Material:	Carburized
Part Numbers:	SRC545-124, SRC545-127, SRC545-133, SRC545-136
Highlight:	2 Flushing Holes RC Drill Bit , 11.0kg-12.0kg Weight Reverse Circulation Drill Bit , 1 Year Warranty RC Reverse Circulation Bit

SRC545 RC Drill Bit for Reverse Circulation Drilling

Our Reverse Circulation line of hammers are used in a wide range of drilling rigs in various geological formations. They are preferred by on-site geologists for their high percentage of uncontaminated sampling, fast penetration rates, and trouble-free, low-cost, long-life performance.

Technical Specifications

Diameter	No x Button diameter mm	Button angle	Flushing holes	Shroud Dia mm	Weight (kgs)	Part No
124 mm (4 7/8")	8x14 (Gauge) 8x13 (Front)	35°	2	122	13.3	SRC545-124
127 mm (5")	8x14 (Gauge) 8x14 (Front)	35°	2	125	13.5	SRC545-127
133 mm (5 1/4")	8x16 (Gauge) 10x14 (Front)	35°	2	131	13.8	SRC545-133
136 mm (5 3/8")	8x16 (Gauge) 6x16+3x14 (Front)	35°	2	134	14.2	SRC545-136

Product Features

Highly cost efficient
Outstanding engineering and manufacturing
Maximum material recovery, up to 98%
No cross contamination of samples
Manufactured using robust hardened metals for long life
Carburized pistons

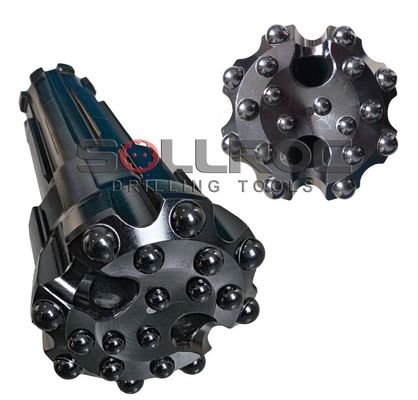

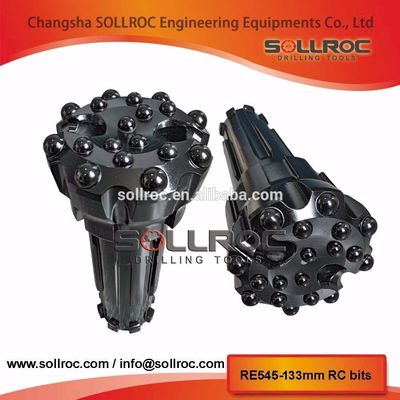

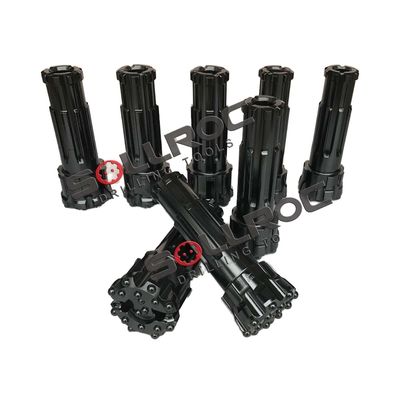

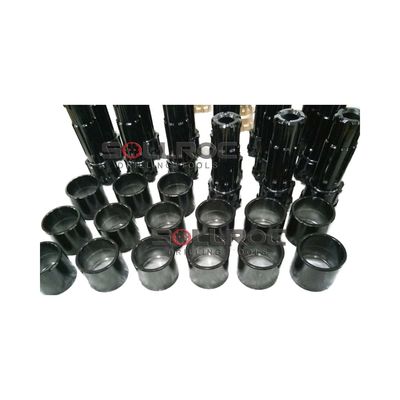

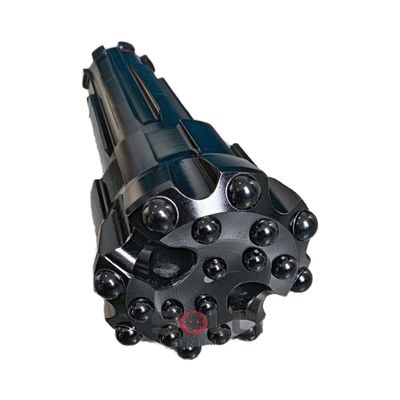

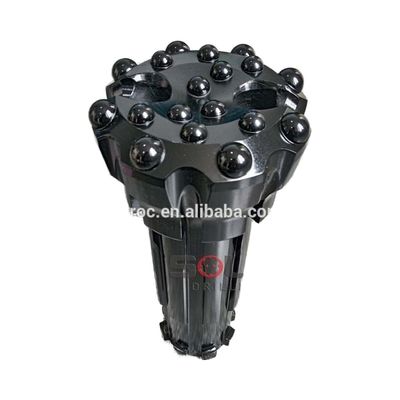

Product Images

Contact Person: Ms. Ling Bo

Tel: 86-13077353340

Fax: 86-731-85551635
