SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling

SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling
SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling

Large Image :  SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling

Product Details:
Place of Origin: Hunan, China
Brand Name: SOLLROC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $200
Contact Now

SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling

Description
Weight: 19.3 KG Material: Carburizedsteel
Processing Type: Forging Size: 5 3/8''-5 3/4''
Diameter: 136mm-146mm Air Pressure: High Air Pressure
Gauge Buttons: 8x16 Front Buttons: 6x16+3x14
Button Angle: 35 Flushing Holes: 2
Shroud Diameter: 134-144mm Weight Range: 18.2-19.2kgs
Part No: SRC54-136 To SRC54-146 Formation Type: Complicated Gravel Formation
Package Type: Ply-wooden
Highlight:

5 3/8''-5 3/4'' Size RC Drill Bit

,

136mm-146mm Diameter Reverse Circulation Drill Bit

,

1 Year Warranty SRC54 RC Bit

SRC54 RC Bit for Reverse Circulation Drilling
We are a leading manufacturer of rock drilling tools, including DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, couplings, cross bits, and drill rods, located in Changsha, Hunan, China. With 20 years of experience in DTH hammers and bits, we have earned a strong reputation worldwide for our high-quality products, professional service, and competitive prices.
Technical Specifications
Diameter No x Button diameter mm Button angle Flushing holes Shroud Dia mm Weight (kgs) Part No
136 mm (5 3/8") 8x16 (Gauge) 6x16+3x14 (Front) 35° 2 134 18.2 SRC54-136
140 mm (5 1/2") 8x16 (Gauge) 6x16+3x14 (Front) 35° 2 138 18.5 SRC54-140
143 mm (5 5/8") 8x16 (Gauge) 6x16+3x14 (Front) 35° 2 141 18.8 SRC54-143
146 mm (5 3/4") 8x16 (Gauge) 6x16+3x14 (Front) 35° 2 144 19.2 SRC54-146
Product Features
  • Efficient cuttings discharge for mineral sampling or waste routing
  • Exhaust side check valves and water flow reduce hammer drowning
  • Eliminates need for expensive, regulated lubricating foams in deep drilling
  • Easy access to key parts for faster, simpler maintenance
  • Reduced drilling friction extends tool and button lifespan
  • Operates with less air while handling larger, heavier rocks
  • Minimizes risk of rocks falling into the hole and causing jams
  • Improved stability in sensitive formations with reduced borehole wall collapse
  • Controlled cuttings exhaust reduces mess, dust, and enables public area drilling

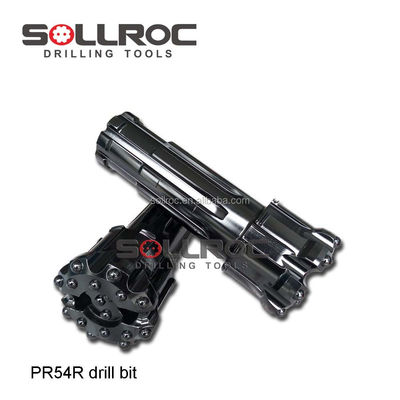

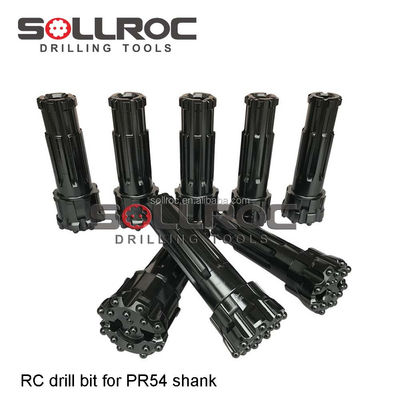

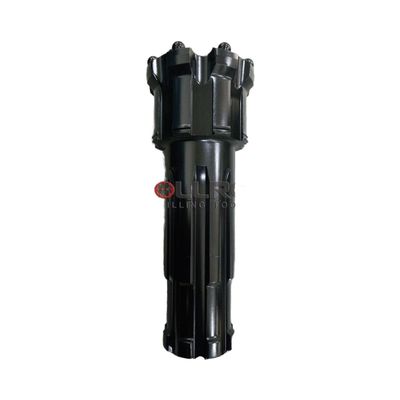

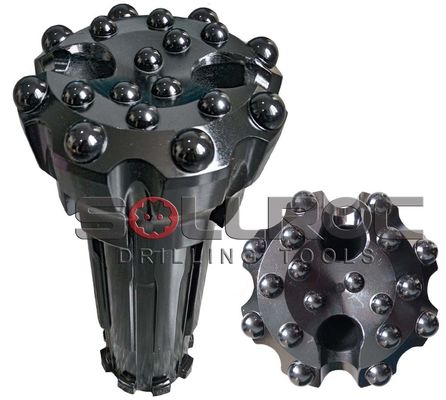

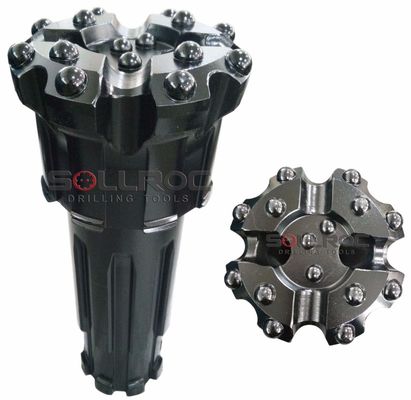

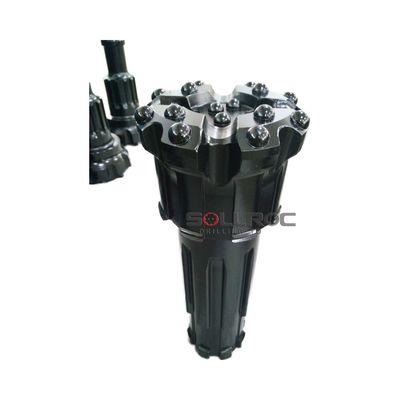

Product Images
SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling 0 SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling 1
Related Products
DTH Hammers DTH Bits RC Hammers RC Bits Button Bits ODEX System
Shipping & Packaging
Shipping Options: By Air, By Sea, or By Express
Packaging: Ply-wooden cases + Pallet
SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling 2 SRC54 RC Drill Bit 5 3/8''-5 3/4'' Size 136mm-146mm Diameter with 1 Year Warranty for Reverse Circulation Drilling 3
