M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

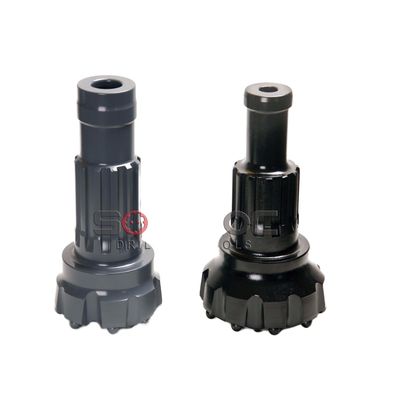

Large Image : M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$200

Contact Now

M30 M40 M50 M60 M80 Shank DTH Drill Bits 3.5 - 12 Inch Carburized Steel Down The Hole Drill Bits

Description

Weight:	25 KG	Material:	Carburized Steel
Processing Type:	Forging	Diameter Range:	3.5 - 12 Inch (90mm-305mm)
Face Shape:	Flat, Convex, Concave	Button Type:	Spherical, Parabolic, Ballistic
Air Hose:	2, 3, 4	Gauge Buttons:	6×φ14, 7×φ13, 7×φ14, 8×φ14, 7×φ16, 7×φ18, 8×φ18, 9×φ18, 10×φ18, 11×φ18, 12×φ18
Front Buttons:	5×φ13, 6×φ13, 6×φ14, 7×φ14, 8×φ14, 8×φ16, 9×φ16, 12×φ16, 17×φ16, 29×φ16	Part Numbers:	M40-105, M40-110, M40-115, M40-120, M40-127, M50-130, M50-140, M50-146, M50-152, M50-165, M60-152, M60-165, M60-178, M60-190, M60-203, M80-195, M80-203, M80-216, M80-254, M80-305
Rock Hardness:	200 Mpa To 260 Mpa	Bit Dia (mm):	105, 110, 115, 120, 127, 133, 140, 146, 152, 165, 178, 190, 203, 195, 216, 254, 305
Bit Dia (inch):	4 1/8", 4 1/4", 4 1/2", 4 3/4", 5", 5 1/4", 5 1/2", 5 3/4", 6", 6 1/2", 7", 7 1/2", 8", 7 11/16", 8 1/2", 10", 12"	Compressive Strength:	200 Mpa To 260 Mpa
Drilling Depth:	No Limit
Highlight:	M30 M40 M50 M60 M80 Shank DTH Drill Bits , 3.5 - 12 Inch Down The Hole Drill Bits , Carburized Steel Button Bits

M30 M40 M50 M60 M80 Shank DTH Drill Bits for DTH Drilling

Product Application

DTH hammers and bits are widely used in underground mining, quarries, hydraulic and hydro-power engineering, water well drilling, mineral exploration, anchoring hole drilling, geothermal engineering, subway excavation, and other civil engineering applications. They offer advantages including high flatness, smooth hole walls, high rigidity of drill rod and hammer, independent high axial thrust, unlimited drilling depth, low device costs, and easy maintenance.

Key Features

Button bit provides high wear resistance on medium-hard to hard abrasive rock formations (200-260 MPa compressive strength) with spherical tungsten carbide inserts for strong configuration against carbide fracture
Recommended for eliminating hole deviation
Ideal for drifting and tunneling applications
Bit face design optimized for medium-hard to hard abrasive rock

Mission Series DTH Bit Specifications

Mission Bits	Bit Dia (mm)	Bit Dia (inch)	Air Hose	Gauge Buttons	Front Buttons	Part No
Mission40	105	4 1/8"	2	6×φ14	5×φ13	M40-105
	110	4 1/4"	2	7×φ13	6×φ13	M40-110
	115	4 1/2"	2	7×φ14	6×φ13	M40-115
	120	4 3/4"	2	8×φ14	6×φ14	M40-120
	127	5"	2	8×φ14	7×φ14	M40-127
Mission50	133	5 1/4"	2	7×φ16	6×φ14	M50-130
	140	5 1/2"	2	7×φ18	7×φ14	M50-140
	146	5 3/4"	2	8×φ18	7×φ14	M50-146

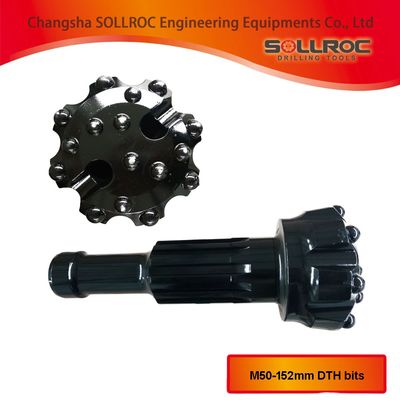

	152	6"	2	8×φ18	8×φ14	M50-152
	165	6 1/2"	2	8×φ18	8×φ16	M50-165
Mission60	152	6"	2	8×φ16	8×φ16	M60-152
	165	6 1/2"	2	8×φ18	8×φ16	M60-165
	178	7"	2	8×φ18	8×φ18	M60-178
	190	7 1/2"	3	9×φ18	9×φ16	M60-190
	203	8"	3	9×φ18	9×φ18	M60-203
Mission80	195	7 11/16"	3	9×φ18	9×φ16	M80-195
	203	8"	3	9×φ18	9×φ18	M80-203
	216	8 1/2"	2	10×φ18	12×φ16	M80-216
	254	10"	3	11×φ18	17×φ16	M80-254
	305	12"	4	12×φ18	29×φ16	M80-305
