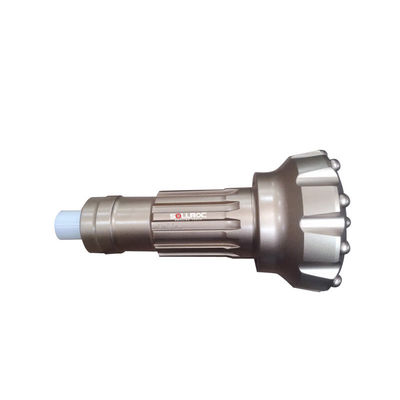

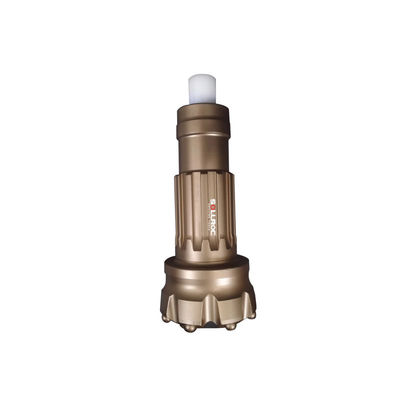

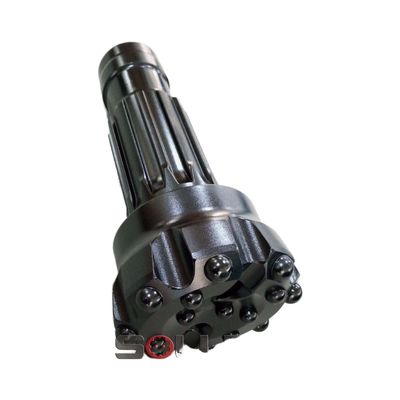

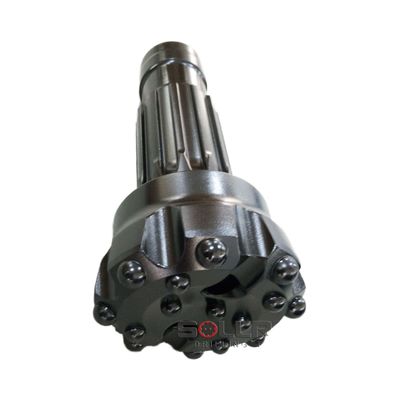

QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining

Large Image : QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Sollroc

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$200

Contact Now

QL60 DTH Drill Bits 6 Inch Steel Carbide Forging with 152-203mm Diameter for Well Drilling and Ore Mining

Description

Weight:	18 KG	Material:	Carbide
Processing Type:	Forging	Size:	6 Inch
Diameter:	152-203mm	Thread:	API Thread

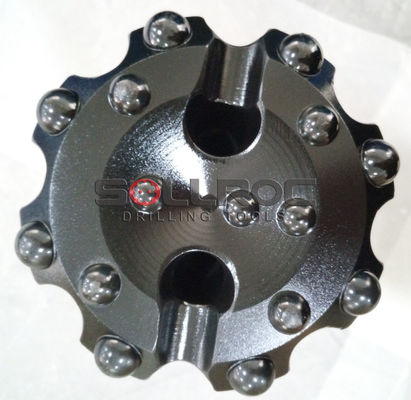

Bit Face Design:	Concave Convex Flat Face	Flushing Holes:	2*26
Gauge Buttons:	8*18	Front Buttons:	416+414
Part No.:	HD65-152	Button Diameter:	26mm, 18mm, 16mm, 14mm
Drilling Depth:	No Limit	Drill Rod Rigidity:	High
Penetration Rate:	High
Highlight:	152-203mm Diameter DTH Drill Bits , Steel Carbide DTH Drill Bits , Forging DTH Drill Bits

QL60 DTH Drill Bits 6 Inch Steel Carbide Forging - API Certified

Product Description

DTH drilling tools utilize compressed air as motivation, driving impact mechanisms down the hole. The system controls piston reciprocating motion through a distribution device in the hammer, transmitting impact power to the DTH bit which breaks rock formations for efficient drilling.

6 Inch DTH Bit Specifications (DHD360 Concave Face Reference)

Bit Diameter	Flushing Holes	Gauge Buttons	Front Buttons	Weight (kg)	Part No.
152mm (6")	2*26mm	8*18mm	416+414mm	23	HD65-152
156mm (6 1/8")	2*26mm	8*18mm	416+414mm	23.5	HD65-156
160mm (6 5/16")	2*26mm	8*18mm	416+414mm	23.5	HD65-160
165mm (6 1/2")	2*26mm	8*18mm	8*16mm	24	HD65-165
171mm (6 3/4")	2*26mm	8*18mm	10*16mm	25	HD65-171
185mm (7 1/4")	3*22mm	9*18mm	10*16mm	27	HD65-185
190mm (7 1/2")	2*26mm	10*18mm	13*16mm	28	HD65-190
203mm (8")	2*26mm	10*18mm	14*16mm	31	HD65-203

Key Features

Strict quality control throughout manufacturing
High-quality special steels and carbide materials
Precision CNC machining production
Optimized design for minimal problem rates
Low air consumption with maximum impact power
High penetration rates for efficient drilling

Operational Advantages

Our DTH bits deliver superior flatness, smooth hole walls, and excellent rigidity. They operate independently of high axial thrust with no drilling depth limitations, offering low maintenance costs and easy servicing. Ideal for drilling holes from 105mm to 254mm diameter.

Applications

Widely used in underground mining, quarries, hydro-power projects, water well drilling, mineral exploration, anchoring holes, geothermal engineering, subway construction, and various civil engineering applications.

About Sollroc

With over 10 years of experience, Sollroc is a leading manufacturer of high-performance rock drilling tools including DTH hammers, RC hammers, drill rods, and top hammer drilling tools. Our products serve mining, quarrying, water well drilling, and geotechnical industries worldwide.

We specialize in designing and manufacturing equipment for both standard models and custom client requirements, implementing strict quality control systems to ensure durable, superior products that meet international standards.
