DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight

Large Image : DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$70

Contact Now

DHD3.5/COP34 DTH Drill Bits for Water Well Drilling with Heat Treatment and 4.2 KG Weight

Description

Weight:	4.2 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Bit Diameter:	85 Mm (3 11/32")
Air Holes:	2	Gauge Buttons:	6×φ13
Front Buttons:	4×φ12	Shank Type:	DHD3.5/COP34
Part Number:	DHD35-85	Hammer Size:	3"
Bit Type:	DTH Bit	Drilling Method:	DTH Drilling
Flushing Medium:	Compressed Air Or Fluids	Impact Mechanism:	Direct Piston Strike
Guidance System:	Hammer Casing
Highlight:	DHD3.5/COP34 DTH Drill Bits , 4.2 KG Weight Down the Hole Bits , Heat Treatment DTH Button Bits

Down the Hole Bits/DHD3.5/COP34/3 Inch Dth Bit for Water Well Drilling

Product Description

In DTH drilling, the percussion mechanism (hammer) is located directly behind the drill bit. The drill pipes transmit feed force, rotation, and compressed air/fluids to the hammer while flushing cuttings. As the hole deepens, additional drill pipes are added to the string behind the hammer. The piston strikes the bit's impact surface directly, with the hammer casing providing stable guidance. This direct energy transfer eliminates joint losses, enabling deeper percussion drilling - a breakthrough for portable water well drilling rigs that can now achieve results comparable to larger truck-mounted rigs.

Technical Specifications

DTH Bits Shank	Bit Dia.	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
DHD3.5/COP34	85mm (3 11/32")	2	6×φ13	4×φ12	4.2	DHD35-85
	90mm (3 1/2")	2	6×φ14	4×φ12	4.5	DHD35-90
	95mm (3 3/4")	2	6×φ14	4×φ13	4.8	DHD35-95
	100mm (3 7/8")	2	8×φ12	6×φ12	5.0	DHD35-100
	105mm (4 1/8")	2	8×φ13	6×φ12	5.5	DHD35-105

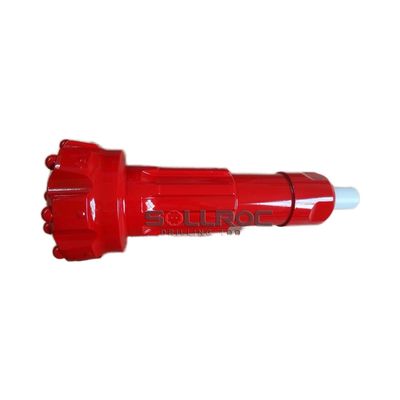

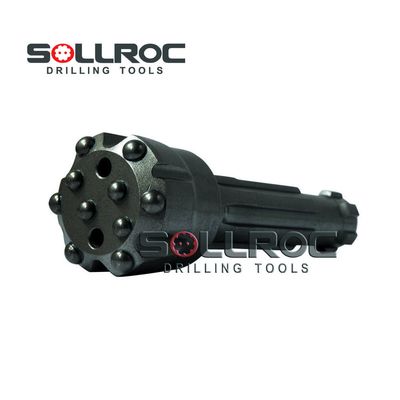

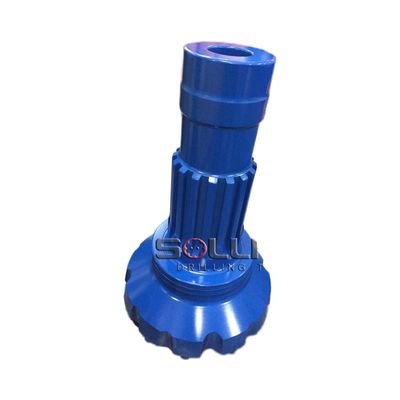

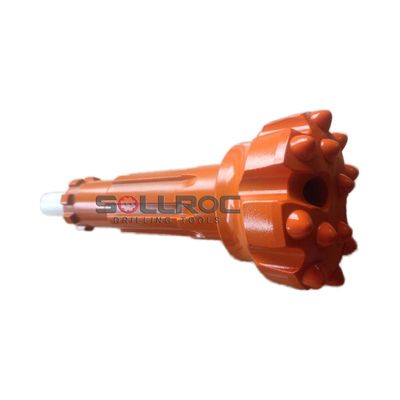

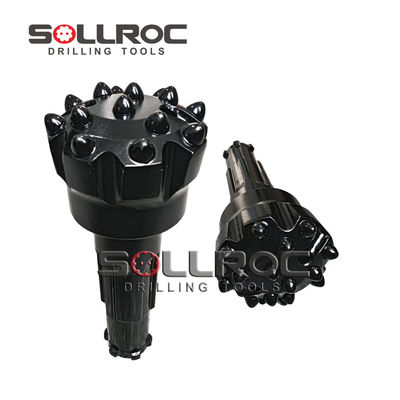

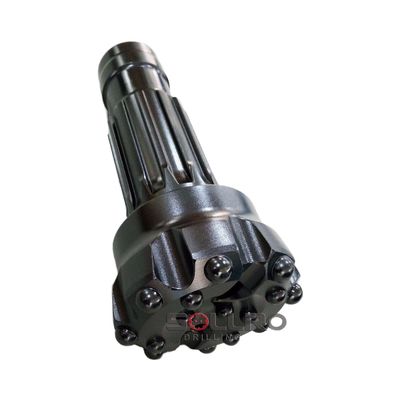

Product Images

Shipping & Packaging

Shipping Methods:

By Air
By Sea
By Express

Packaging: Ply-wooden cases + Pallet
