4''-115mm DTH Drill Bit with 1 Year Warranty and Heat Treatment for High Performance Drilling

Large Image : 4''-115mm DTH Drill Bit with 1 Year Warranty and Heat Treatment for High Performance Drilling

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$100

Contact Now

4''-115mm DTH Drill Bit with 1 Year Warranty and Heat Treatment for High Performance Drilling

Description

Weight:	8.2 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Bit Diameter:	115 Mm
Bit Diameter (inch):	4 1/2''	Flushing Holes:	2 * 18
Gauge Buttons:	7*14	Front Buttons:	7*13
Bit Weight:	8.5 Kg	Bit Face Shape:	Concave, Convex, Flat
Air Pressure:	High Pressure	Drilling Rig Type:	High Pressure Drilling Rigs
Rock Formation Suitability:	Medium Hard, Homogenerous, Soft To Medium-hard, Hard To Very Hard	Hole Deviation Control:	Good (Concave), Poor (Convex)
Flushing Capacity:	Good (Concave)
Highlight:	1 Year Warranty DTH Drill Bit , 8.2 KG Weight DTH Drill Bit , Heat Treatment DTH Drill Bit

Down the Hole/Button Bits/4''-115mm DTH Bit

Sollroc manufactures and supplies high-quality DTH bits using superior raw materials and efficient machinery. These sturdy bits are designed for high-pressure drilling rigs and are available in various technical specifications at competitive industry rates.

Technical Parameters

Bit Diameter	Flushing Holes	No.*Button Dia.mm	Weight (Kg)
115 mm \| 4 1/2"	Gauge Buttons: 2 * 18 Front Buttons: 7*14	7*13	8.5

Product Features

Bit Face Shape Selection:

Concave Face: Ideal for medium-hard, homogeneous rock formations. Provides excellent hole deviation control and efficient flushing capacity.
Convex Face: Delivers high penetration rates in soft to medium-hard formations with low to medium air pressures. Offers superior resistance to steel wash while reducing load on gauge buttons, though with less hole deviation control.
Flat Face Bit: Designed for hard to very hard, abrasive rock formations in high air pressure applications. Combines good penetration rates with resistance to steel wash.

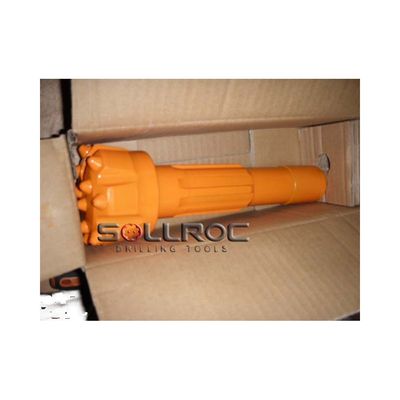

Shipping & Package

Shipping: Available by Air, Sea or Express
Package: Ply-wooden cases + Pallet

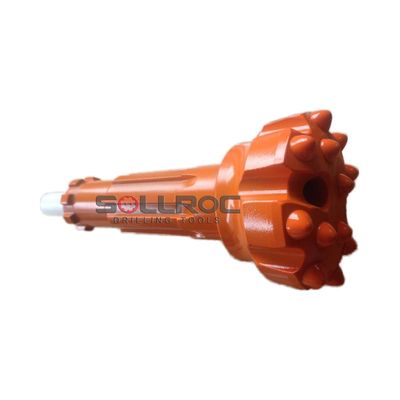

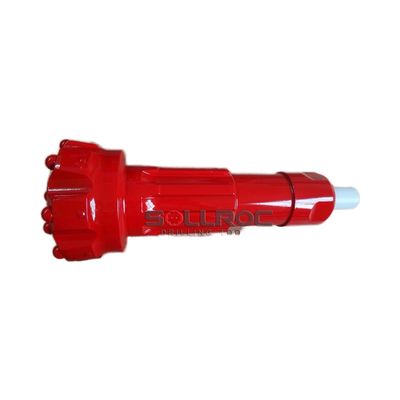

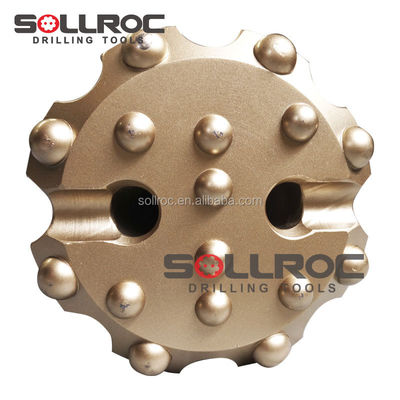

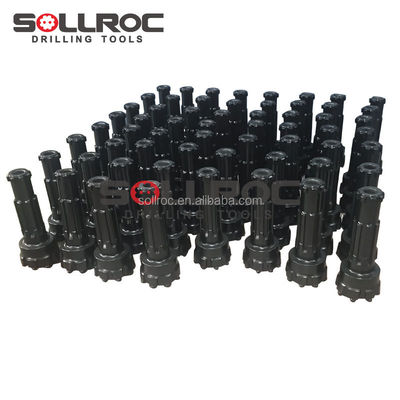

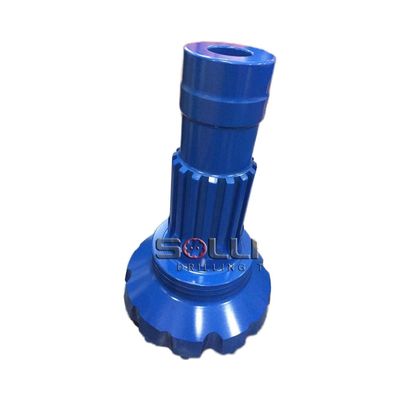

Product Images

Contact Person: Ms. Ling Bo

Tel: 86-13077353340

Fax: 86-731-85551635
