3 Inch DTH Drill Bit with Heat Treatment Precision Machined for Fatigue Resistance in Water Well Drilling

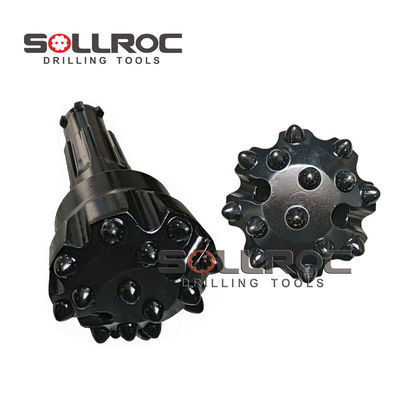

Large Image : 3 Inch DTH Drill Bit with Heat Treatment Precision Machined for Fatigue Resistance in Water Well Drilling

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$100

Contact Now

3 Inch DTH Drill Bit with Heat Treatment Precision Machined for Fatigue Resistance in Water Well Drilling

Description

Weight:	4.5 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Bit Diameter:	85-105 Mm
Air Holes:	2	Gauge Buttons:	6×φ13-8×φ13
Front Buttons:	4×φ12-6×φ12	Shank Type:	BR3
Part Numbers:	BR3-85 To BR3-105	Hammer Size:	3 Inch
Drilling Type:	High Air Pressure DTH	Button Configuration:	Precision Buttons
Body Material:	Alloy Steel	Surface Treatment:	Surface Compression
Hardness:	Heat Treated
Highlight:	Heat Treatment DTH Drill Bit , Precision Machined Down The Hole Bit , Fatigue Resistance DTH Button Bit

SOLLROC/Down the Hole Bits BR3 3 Inch Dth Bit for Water Well Drilling

Product Description

SOLLROC DTH button bits are used worldwide in various drilling conditions. Our drill bits feature proprietary cemented carbide buttons designed for extended drilling performance.

Product Features

Comprehensive range of DTH drill bits for all applications
Manufactured from high-quality alloy steel
Precision machined for perfect body geometry
Heat treated to optimal hardness specifications
Surface compression treatment for enhanced fatigue resistance
Fitted with precision buttons manufactured in-house

Technical Specifications

DTH Bits Shank	Bit Dia.	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
BR3	85 mm / 3 11/32"	2	6×φ13	4×φ12	3.8	BR3-85
BR3	90 mm / 3 1/2"	2	6×φ14	4×φ12	4.0	BR3-90
BR3	95 mm / 3 3/4"	2	6×φ14	4×φ13	4.3	BR3-95
BR3	100 mm / 3 7/8"	2	8×φ12	6×φ12	4.8	BR3-100
BR3	105 mm / 4 1/8"	2	8×φ13	6×φ12	5.2	BR3-105

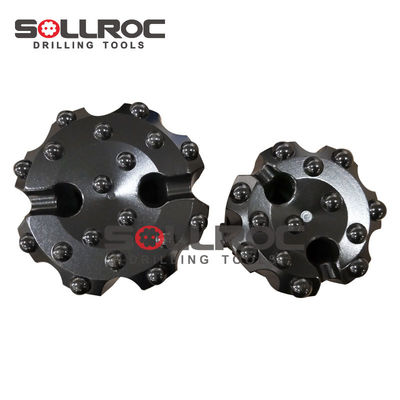

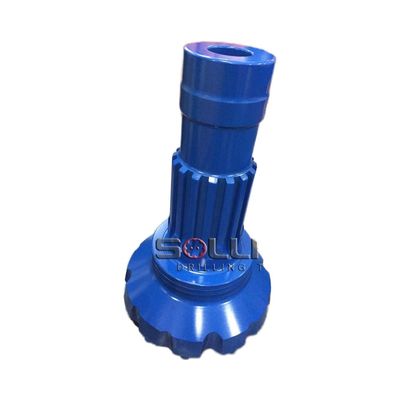

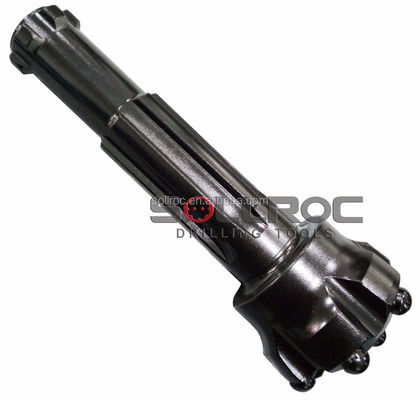

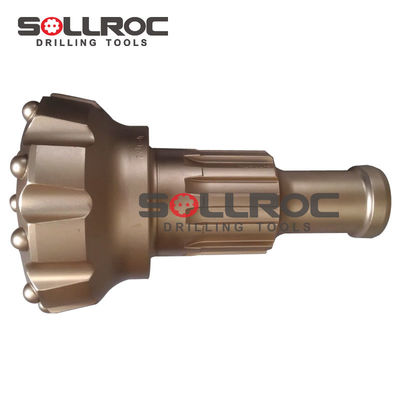

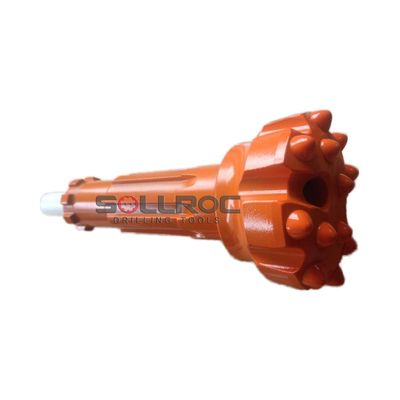

Product Images

Shipping & Packaging

Shipping Methods: By Air, By Sea, or By Express

Packaging: Ply-wooden cases with pallet

Contact Person: Ms. Ling Bo

Tel: 86-13077353340

Fax: 86-731-85551635
