10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

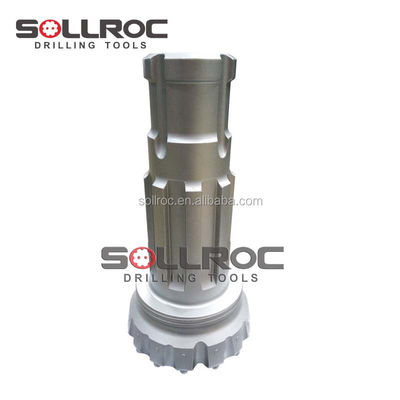

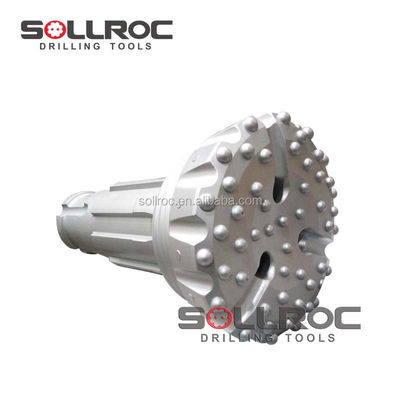

Large Image : 10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

10inch DTH Drill Bit for Coal Mining with Heat Treatment and 254mm to 330mm Diameter

Description

Weight:	88.4 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Diameter:	254mm To 330mm
Air Compressor:	High Air Pressure DTH Bits	Bit Dia.:	254mm, 305mm, 311mm, 318mm, 330mm
Air Holes:	3, 4	Gauge Buttons:	12×φ18, 16×φ18, 14×φ18
Front Buttons:	20×φ16, 36×φ18, 38×φ16, 42×φ16	Part No.:	SD10-254, SD10-305, SD10-311, SD10-318, SD10-330, N100-254, N100-305, N100-311, N100-318, N100-330
Bit Face Shape:	Concave Face, Convex Face, Flat Face	Shank No.:	SD10, N100
Delivery Time:	15-25 Days	Package:	Ply - Wooden Cases + Pallet
Shipping Method:	By Air, By Sea, By Express
Highlight:	254mm to 330mm DTH Drill Bit , Heat Treatment Down the Hole Drill Bit , Coal Mining Borehole Drill Bit

Down the Hole 10inch Drill Bit for Borehole Drilling

Technical Specifications

DTH Bits Shank	Bit Dia.	Air Holes No.	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
SD10 Series
254 mm (10")	254 mm	3	12×φ18	20×φ16	108.0	SD10-254
305 mm (12")	305 mm	4	12×φ18	36×φ18	125.0	SD10-305
311 mm (12 1/4")	311 mm	4	12×φ18	36×φ16	130.0	SD10-311
318 mm (12 1/2")	318 mm	4	12×φ18	38×φ16	142.0	SD10-318
330 mm (13")	330 mm	4	16×φ18	42×φ16	155.0	SD10-330
N100 Series
254 mm (10")	254 mm	3	12×φ18	20×φ16	90.0	N100-254
305 mm (12")	305 mm	4	12×φ18	36×φ18	102.0	N100-305
311 mm (12 1/4")	311 mm	4	12×φ18	36×φ16	104.0	N100-311
318 mm (12 1/2")	318 mm	4	12×φ18	38×φ16	106.0	N100-318
330 mm (13")	330 mm	4	14×φ18	42×φ16	112.0	N100-330

Delivery Time

Standard delivery takes 15-25 days. Express delivery available in 3-5 days when items are in stock.

Product Features

Bit Face Shape Selection

Concave Face: Ideal for medium-hard and homogeneous rock formations. Provides excellent hole deviation control and superior flushing capacity.
Convex Face: Delivers high penetration rates in soft to medium-hard formations with low to medium air pressures. Offers maximum resistance to steel wash but has poorer hole deviation control.
Flat Face Bit: Designed for hard to very hard and abrasive rock formations with high air pressures. Provides good penetration rates and excellent resistance to steel wash.

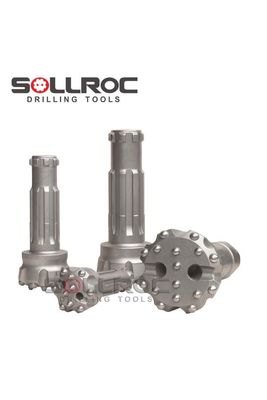

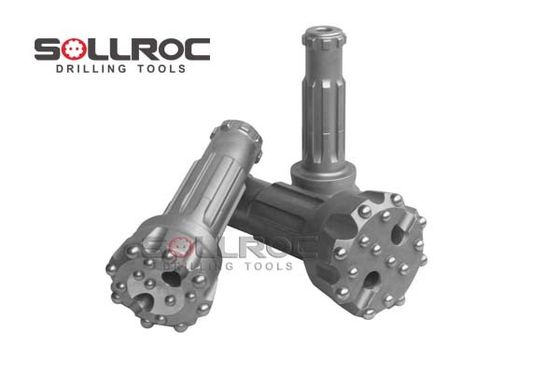

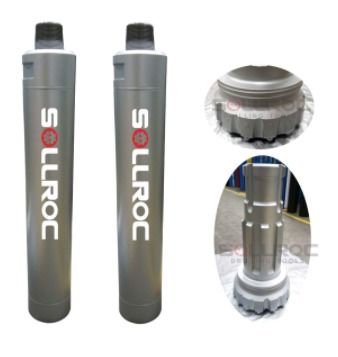

Product Images

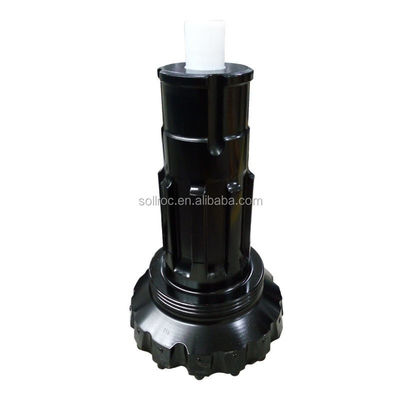

Shipping & Packaging

Shipping Methods: Available by air, sea, or express courier.

Packaging: Ply-wooden cases with pallet for secure transportation.

Contact Person: Ms. Ling Bo

Tel: 86-13077353340

Fax: 86-731-85551635
