4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit

4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit

Large Image :  4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit

Product Details:
Place of Origin: Hunan, China
Brand Name: SOLLROC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $120
Contact Now

4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit

Description
Bit Diameter: 120mm Bit Diameter: 4 3/4''
Flushing Holes: 2 * 18 Gauge Buttons: 8*14
Front Buttons: 7*13 Weight: 8.8 Kg
Material: Carburized Steel Processing Type: Heat Treatment And Machining Process
Formation: Medium Hard Formation Air Compressor: High Air Pressure DTH Bits
Bit Face Shape: Concave Face, Convex Face, Flat Face Button Diameter: 18mm, 14mm, 13mm
Machine Type: Drilling Tool Use: Well Drilling
Type: DRILL BIT
Highlight:

4''-120mm DTH Drill Bit

,

Medium Hard Formation Down The Hole Bit

,

High Performance DTH Button Bit

4''-120mm DTH Drill Bit for Water Well Drilling/Mining
Technical Specifications
Bit Diameter Flushing Holes No.*Button Dia.mm Weight (Kg)
120 mm / 4 3/4'' Gauge Buttons: 2 * 18
Front Buttons: 8*14		 7*13 8.8
Product Description

Sollroc DTH bits are engineered for superior penetration while maintaining maximum cleaning action at the bit face, extending product lifespan. Manufactured using premium aircraft-quality alloy steels and proprietary treatment processes for maximum durability.

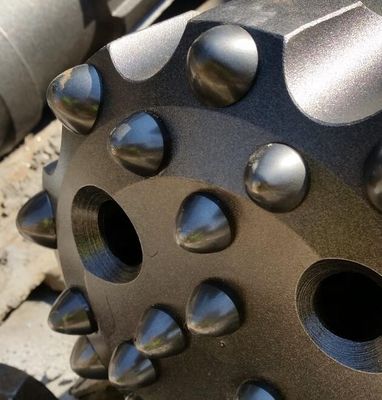

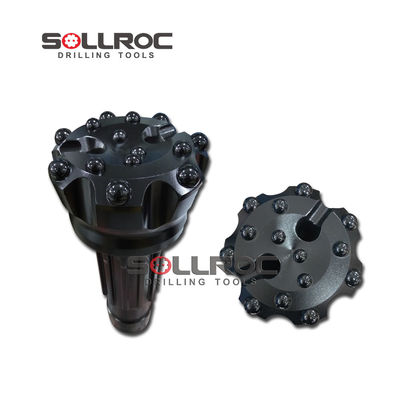

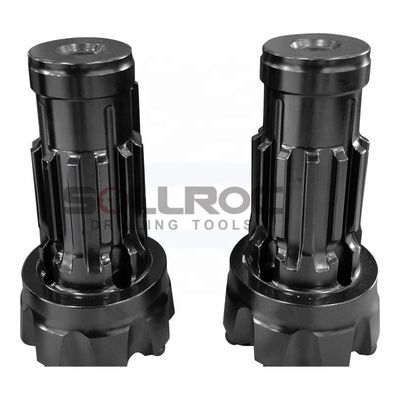

Product Images
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 0 4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 1
Product Features
Bit Face Shape Selection:
  • Concave Face: Ideal for medium-hard, homogeneous rock formations. Provides excellent hole deviation control and flushing capacity.
  • Convex Face: Delivers high penetration rates in soft to medium-hard formations with low to medium air pressures. Resistant to steel wash but offers poor hole deviation control.
  • Flat Face Bit: Designed for hard to very hard, abrasive rock formations with high air pressures. Offers good penetration rates and steel wash resistance.
Shipping & Packaging

Shipping Methods: By Air, By Sea, or By Express

Packaging: Ply-wooden cases with Pallet

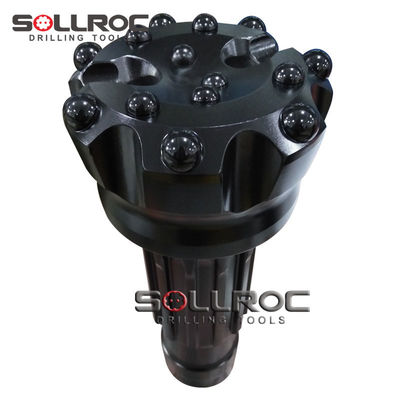

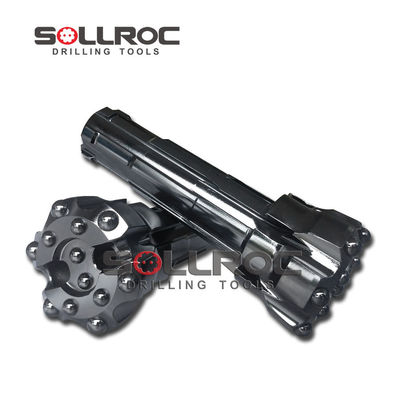

4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 2 4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 3
Related Products
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 4 DTH Hammers
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 5 DTH Bits
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 6 RC Hammers
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 7 RC Bits
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 8 Button Bits
4''-120mm DTH Drill Bit for Medium Hard Formation with High Performance Down The Hole Bit 9 ODEX System
