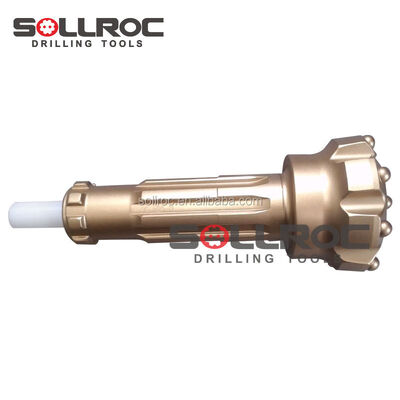

5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

Large Image : 5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$200

Contact Now

5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

Description

Weight:	15 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Thread:	REG
Bit Dia.:	133 Mm, 140 Mm, 146 Mm, 152 Mm, 165 Mm	No. Air Holes:	2
Gauge Buttons:	7×φ16, 7×φ18, 8×φ18, 8×φ18, 8×φ18	Front Buttons:	6×φ14, 7×φ14, 7×φ14, 8×φ14, 8×φ16
Bit Weight:	15.5 KG, 16.0 KG, 16.5 KG, 17.0 KG, 19.0 KG	Part No.:	SD5-130, SD5-140, SD5-146, SD5-152, SD5-165
Bit Head Types:	Convex, Flat Face, Concave	Insert Types:	Ballistic, Semi-ballistic, Domed
Shank Size:	5 1/4", 5 1/2", 5 3/4", 6", 6 1/2"	Rock Hardness:	Soft To Medium, Hard To Very Hard
Drill Bit Life:	Long
Highlight:	5 Inch DTH Drill Bit , Carburized Steel Down the Hole Bit , High Performance SD5 Drill Bit

SD5 Down the Hole Drill Bits - 5 Inch DTH Bit for Mining

Product Overview

Our SD5 series Down the Hole drill bits are engineered for optimal performance in various mining applications. Available with three distinct bit head configurations - Convex, Flat Face, and Concave - each paired with specialized inserts to handle any rock formation challenge.

Optimal Bit Selection

Choosing the right drill bit depends on productivity and reliability requirements. For soft to medium rock formations with high penetration rates, ballistic and semi-ballistic inserts combined with flat face or concave bit heads deliver superior performance. For hard to very hard rock formations, domed inserts with convex heads provide extended drill bit life and durability.

Company Expertise

Over 10 years of specialized experience in manufacturing drilling tools and spare parts
Advanced manufacturing technology and equipment
Technical team with more than 13 years of professional expertise

Technical Specifications

DTH Bits Shank	Bit Dia. (mm/inch)	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
SD5	133 / 5 1/4"	2	7×φ16	6×φ14	15.5	SD5-130
SD5	140 / 5 1/2"	2	7×φ18	7×φ14	16.0	SD5-140
SD5	146 / 5 3/4"	2	8×φ18	7×φ14	16.5	SD5-146
SD5	152 / 6"	2	8×φ18	8×φ14	17.0	SD5-152
SD5	165 / 6 1/2"	2	8×φ18	8×φ16	19.0	SD5-165

Product Features

Ideal for water well drilling, micro piling, geothermal applications, and anchoring
Consistent and reliable performance in demanding conditions
Extended service life through durable construction
Easy maintenance and serviceability
Stable operation and precise drilling performance

Applications & Keywords

water well drilling geothermal drilling micro piling rock drilling ground drilling drilling tools DTH bits mining equipment

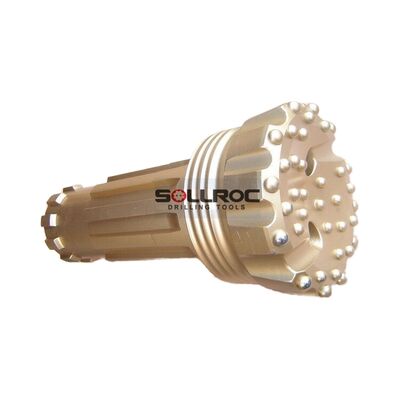

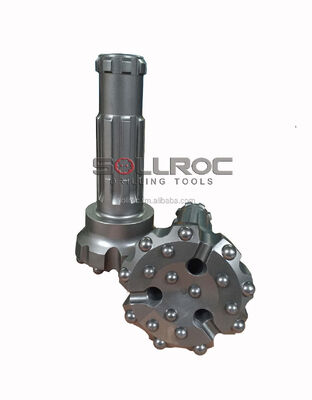

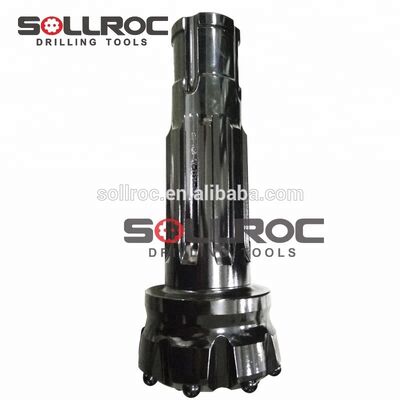

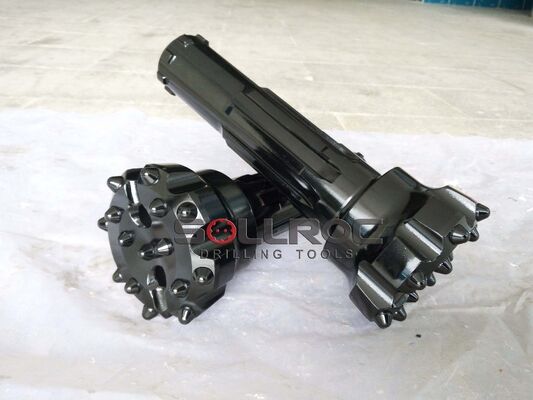

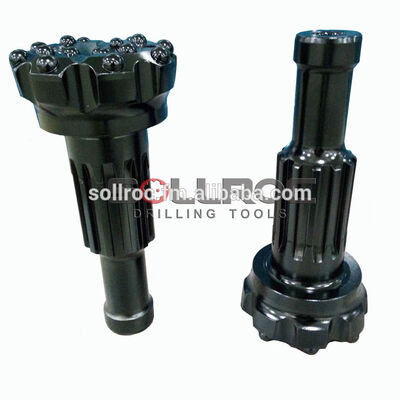

Product Images

Shipping & Packaging

Shipping Methods: By Air, By Sea, or By Express
Packaging: Ply-wooden cases + Pallet

Contact Person: Ms. Ling Bo

Tel: 86-13077353340

Fax: 86-731-85551635
