12 Inch Carburized Steel DTH Drill Bit for High Air Pressure Water Well Drilling and Mining

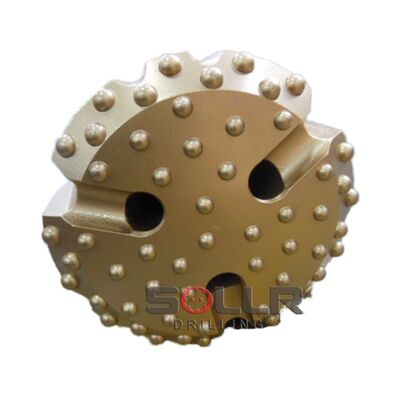

Large Image : 12 Inch Carburized Steel DTH Drill Bit for High Air Pressure Water Well Drilling and Mining

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2,000

Contact Now

12 Inch Carburized Steel DTH Drill Bit for High Air Pressure Water Well Drilling and Mining

Description

Weight:	105 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Diameter:	305mm To 381mm
Air Compressor:	High Air Pressure DTH Bits	Shank Type:	DHD1120, SD12, N120
Bit Diameter:	305mm, 330mm, 356mm, 381mm	Air Holes:	4
Gauge Buttons:	12×φ18, 16×φ18, 16×φ19	Front Buttons:	36×φ16, 42×φ16, 48×φ16, 48×φ18
DHD1120 Weight:	152.0 KG, 165.0 KG, 178.0 KG, 198.0 KG	SD12 Weight:	156.0 KG, 180.0 KG, 191.0 KG, 200.0 KG
N120 Weight:	152.0 KG, 165.0 KG, 178.0 KG, 195.0 KG	Bit Size:	12", 13", 14", 15"
Button Size:	φ16, φ18, φ19
Highlight:	12 Inch DTH Drill Bit , Carburized Steel Down The Hole Bit , High Air Pressure DTH Hammer Bit

SOLLROC Down the Hole 12 Inch DTH Bit for Water Well Drilling and Mining

We manufacture, export, and supply high-quality DTH Hammers designed for optimal performance in demanding drilling applications. Our hammers are precision-engineered using superior raw materials and advanced manufacturing techniques to ensure durability and reliability. Built with sturdy construction, these DTH Hammers are specifically designed to suit high-pressure drilling rigs and are available in various technical specifications at competitive industry rates.

Technical Specifications

DTH Bits Shank	Bit Diameter	Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)
DHD1120	305 mm / 12"	4	12×φ18	36×φ16	152.0
	330 mm / 13"	4	16×φ18	42×φ16	165.0
	356 mm / 14"	4	16×φ19	48×φ16	178.0
	381 mm / 15"	4	16×φ19	48×φ18	198.0
SD12	305 mm / 12"	4	12×φ18	36×φ16	156.0
	330 mm / 13"	4	16×φ18	42×φ16	180.0
	356 mm / 14"	4	16×φ19	48×φ16	191.0
	381 mm / 15"	4	16×φ19	48×φ18	200.0
N120	305 mm / 12"	4	12×φ18	36×φ16	152.0
	330 mm / 13"	4	16×φ18	42×φ16	165.0
	356 mm / 14"	4	16×φ19	48×φ16	178.0
	381 mm / 15"	4	16×φ19	48×φ18	195.0

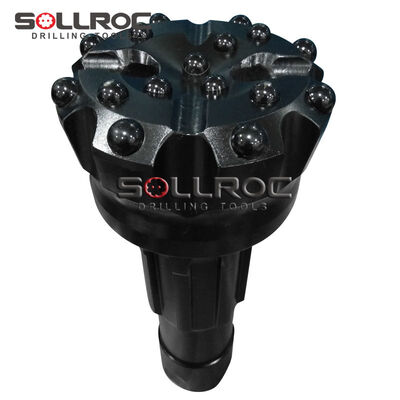

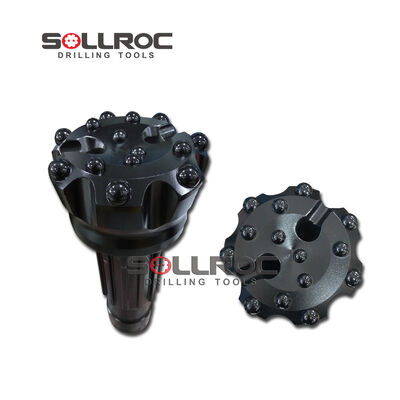

Product Images

Shipping & Packaging

Shipping Methods:

By Air
By Sea
By Express Courier

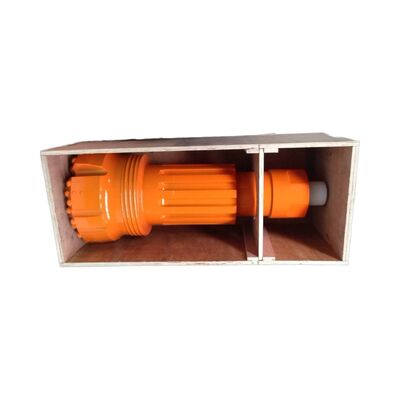

Packaging:

Ply-wooden cases with pallets for secure transportation
