4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

Large Image : 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$100

Contact Now

4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

Description

Weight:	8.7 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Size:	4Inch
Shank:	DHD340/SD4/QL40/M40	Bit Diameter:	125 Mm
Flushing Holes:	2 * 18	Gauge Buttons:	8*14
Front Buttons:	7*13	Button Dia:	9.0 Mm
Bit Face Shape:	Drop Center, Concave, Convex, Double Gauge, Flat Face	Button Shape:	Domed/Round, Parabolic/Semi-Ballistic, Ballistic, Sharp, Flat
Air Pressure:	High Air Pressure	Drill Bit Type:	DTH Drill Bit
Machine Compatibility:	Drilling Tool
Highlight:	4''-125mm DTH Drill Bits , Carburized Steel Button Bits , Water Well Drilling Down The Hole Bits

4" (125mm) DTH Drill Bit for Water Well Drilling & Mining

We manufacture and export high-quality DTH Hammers designed for superior performance in demanding drilling applications. Our hammers are precision-engineered using premium raw materials and advanced manufacturing techniques to ensure durability and reliability. Specifically designed for high-pressure drilling rigs, these DTH Hammers deliver exceptional performance across various technical specifications at competitive industry rates.

Technical Specifications

Bit Diameter	Flushing Holes	Gauge Buttons	Front Buttons	Weight (Kg)
125 mm (4 15/16")	2 * 18 mm	8 * 14 mm	7 * 13 mm	9.0

Bit Face Shape Selection

Drop Center Bit: Ideal for high penetration rates in soft to medium hard and fissured rock formations. Operates with low to medium air pressures and provides maximum hole deviation control.
Concave Face: Versatile all-round application bit for medium hard and homogeneous rock formations. Offers good hole deviation control and excellent flushing capacity.
Convex Face: Delivers high penetration rates in soft to medium-hard formations with low to medium air pressures. Provides maximum resistance to steel wash and reduces load on gauge buttons, though with less hole deviation control.
Double Gauge Face: Suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures with good resistance to steel wash.
Flat Face Bit: Perfect for hard to very hard and abrasive rock formations in high-pressure applications. Combines good penetration rates with excellent resistance to steel wash.

Carbide Button Shape Selection

Domed/Round Button: Typically used as gauge buttons, suitable for every abrasive and very hard formations.
Parabolic/Semi-Ballistic Buttons: Used as both gauge and front buttons, ideal for medium abrasive and hard formations.
Ballistic Button: Primarily used as front buttons for medium abrasive and medium hard formations. Can also serve as gauge buttons in soft rock conditions.
Sharp Button: Designed as front buttons for soft formations where fast penetration rates are achievable.
Flat Button: Used as protection buttons to reduce wear on rubbing surfaces of DTH bits.

Shipping & Packaging

Shipping Methods: Available by Air, Sea, or Express delivery.

Packaging: Securely packed in ply-wooden cases with pallets for safe transportation.

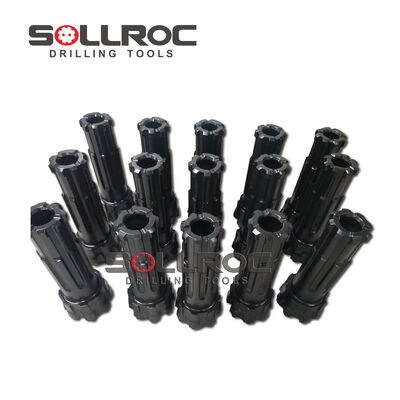

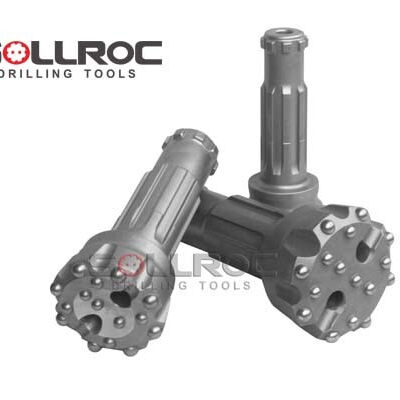

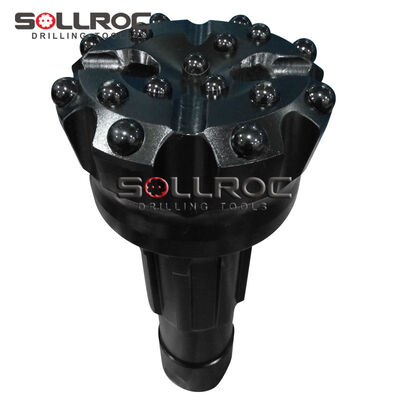

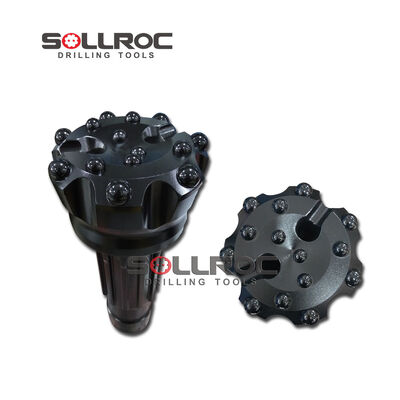

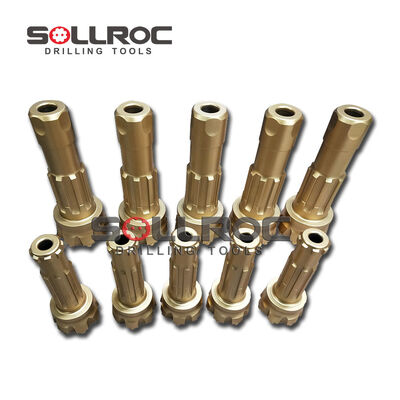

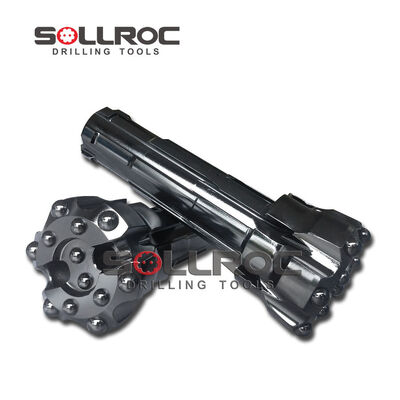

Product Images
