5 Inch Carburized Steel DTH Drill Bits for Water Well Drilling and Quarry Applications

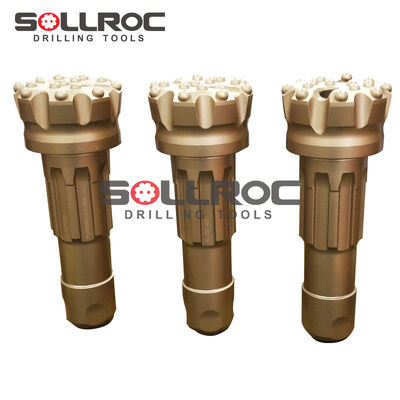

Large Image : 5 Inch Carburized Steel DTH Drill Bits for Water Well Drilling and Quarry Applications

Product Details:

Place of Origin:	Hunan, China
Brand Name:	SOLLROC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CN¥1,399.58

Contact Now

5 Inch Carburized Steel DTH Drill Bits for Water Well Drilling and Quarry Applications

Description

Weight:	15 KG	Material:	Carburized Steel
Processing Type:	Heat Treatment And Machining Process	Shank Size:	COP54
Bit Diameter:	5 1/4", 5 1/2", 5 3/4", 6"	Air Holes:	2
Gauge Buttons:	7×φ16, 7×φ18, 8×φ18	Front Buttons:	6×φ14, 7×φ14, 8×φ14
Part Numbers:	COP54-133, COP54-140, COP54-146, COP54-152	Bit Weight Range:	15.0 - 17.5 KG
Drill Type:	DTH	Air Compressor Compatibility:	High Air Pressure
Use Case:	Water Well, Micro Piling, Geothermal, Anchoring	Service Life:	Long
Maintenance:	Easy
Highlight:	5 Inch DTH Drill Bits , Carburized Steel DTH Drill Bits , Water Well Drilling DTH Bits

COP54 DTH Drill Bits for Water Well Drilling

SOLLROC DTH Bits deliver superior cutting power and faster drilling rates through precision heat treatment and tightly controlled machining tolerances.

Technical Specifications

For 5" Hammer	DTH Bits Shank	Bit Diameter	No. Air Holes	Gauge Buttons	Front Buttons	Weight (Kg)	Part No.
COP54	mm	inch
	133	5 1/4"	2	7×φ16	6×φ14	15.0	COP54-133
	140	5 1/2"	2	7×φ18	7×φ14	16.0	COP54-140
	146	5 3/4"	2	8×φ18	7×φ14	17.0	COP54-146
	152	6"	2	8×φ18	8×φ14	17.5	COP54-152

Product Features

Designed for water well drilling, micro piling, geothermal applications, and anchoring
Reliable performance in demanding conditions
Extended service life through durable construction
Easy maintenance and serviceability
Stable operation and consistent performance

Keywords: forage de roches, le forage de puits, Forage et, forage geothermique, forage du sol, des outils de forage, micropiling, ENQUÊTES Une rotopercussion

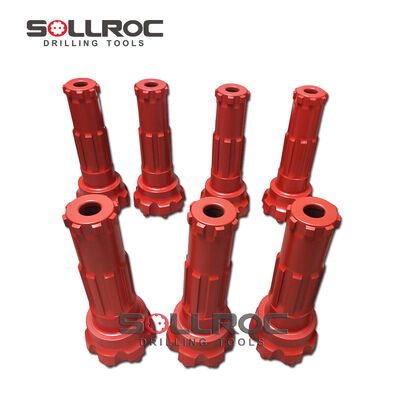

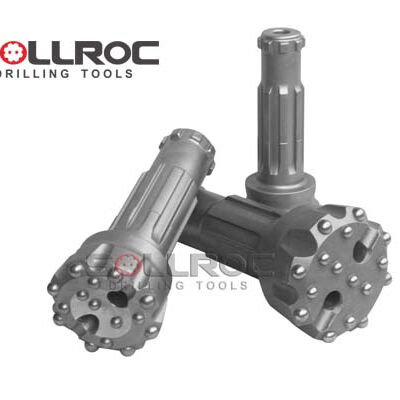

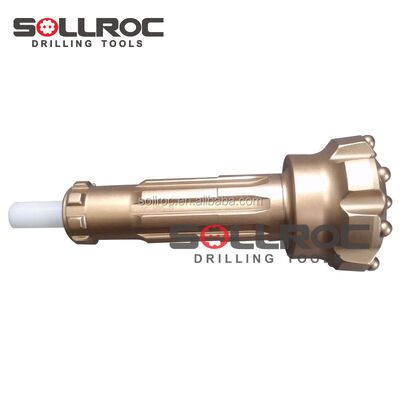

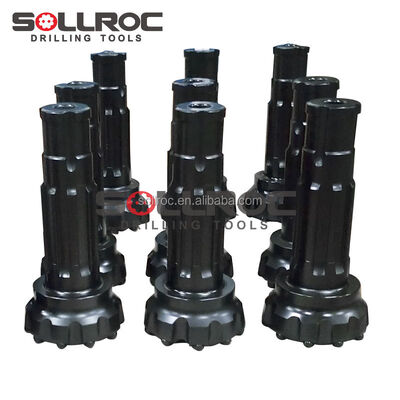

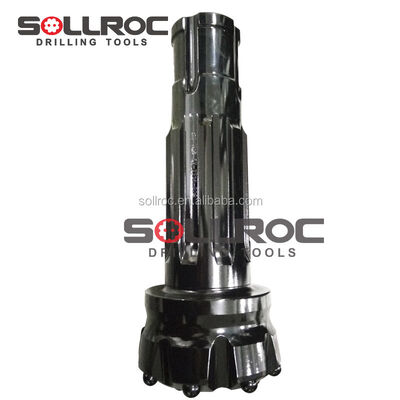

Product Images

Shipping & Packaging

Shipping Methods

Available by Air, Sea, or Express delivery

Packaging

Ply-wooden cases with pallet for secure transport
