4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit
4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

Large Image :  4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

Product Details:
Place of Origin: Hunan, China
Brand Name: SOLLROC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: CN¥699.79
Contact Now

4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit

Description
Weight: 16 KG Material: Carburized Steel
Processing Type: Heat Treatment And Machining Process Hole Diameter: 105-130mm
Flushing Holes: 2*18mm Bit Weight: 7.5-9.4kgs
Shank Type: DHD340 Gauge Buttons: 6×φ14, 7×φ13, 7×φ14, 8×φ14
Front Buttons: 5×φ13, 6×φ13, 6×φ14, 7×φ14 Bit Diameter: 105mm, 110mm, 115mm, 120mm, 127mm
Air Holes: 2 Part Numbers: DHD340-105, DHD340-110, DHD340-115, DHD340-120, DHD340-127
Button Material: Tungsten Carbide Design Type: Ballistic Bit
Drilling Method: DTH Drilling
Highlight:

4 Inch DTH Drill Bit

,

Carburized Steel Down The Hole Bit

,

Water Well Drilling DTH Hammer Bit

SOLLROC DHD340 4-Inch DTH Bit for Water Well Drilling
Product Overview
Sollrock manufactures tungsten carbide buttons in-house, maintaining complete control over production from raw material milling through pressing, sintering, and grinding. This vertical integration ensures superior quality control and precise composition of our drilling bits. The ballistic bit design is engineered for optimal penetration performance in today's demanding rock drilling applications, particularly effective in increasingly hard geological formations.
Manufacturing Excellence
  • Over 10 years of specialized experience in drilling tools and spare parts manufacturing
  • Advanced production technology and state-of-the-art equipment
  • Technical team with more than 13 years of professional expertise
Technical Specifications for 4" Hammer
DTH Bits Shank Bit Dia. (mm) Bit Dia. (inch) No. Air Holes Gauge Buttons Front Buttons Weight (Kg) Part No.
DHD340 105 4 1/8" 2 6×φ14 5×φ13 9.0 DHD340-105
DHD340 110 4 1/4" 2 7×φ13 6×φ13 9.3 DHD340-110
DHD340 115 4 1/2" 2 7×φ14 6×φ13 10.0 DHD340-115
DHD340 120 4 3/4" 2 8×φ14 6×φ14 11.0 DHD340-120
DHD340 127 5" 2 8×φ14 7×φ14 12.0 DHD340-127
Product Features
  • Ideal for water well drilling, micro piling, geothermal applications, and anchoring
  • Consistent and reliable performance in demanding conditions
  • Extended service life through superior material composition
  • Easy maintenance and replacement procedures
  • Stable operation and consistent drilling performance

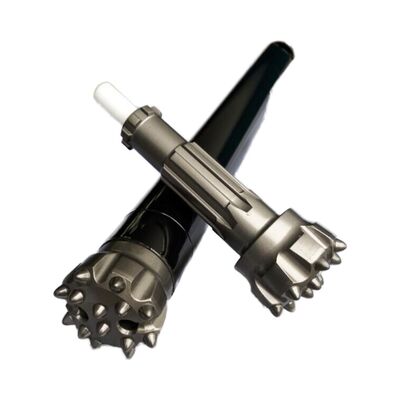

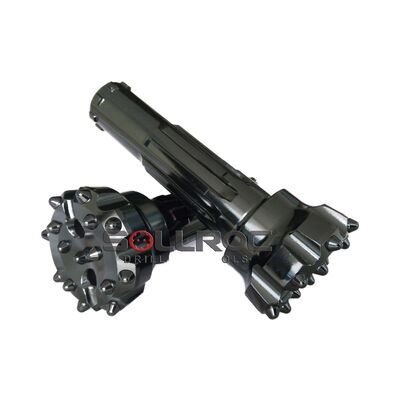

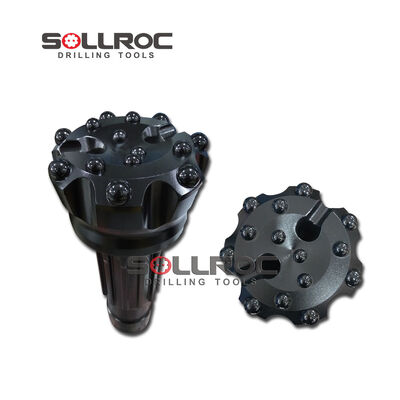

Product Images
4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 0
4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 1
4 Inch Carburized Steel DTH Drill Bit for Water Well Drilling and High Performance Down The Hole Bit 2
Shipping & Packaging
Shipping Methods: By Air, By Sea, or By Express
Packaging: Ply-wooden cases with Pallet
