SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING

SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING
SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING

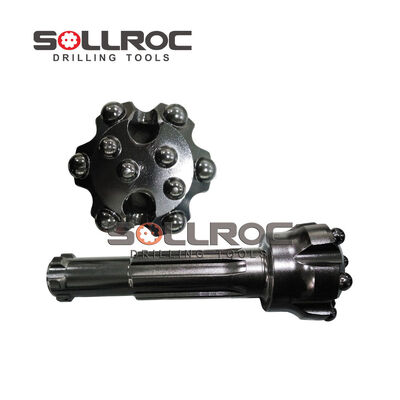

Large Image :  SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING

Product Details:
Place of Origin: Hunan, China
Brand Name: SOLLROC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100
Contact Now

SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING

Description
Warranty: 1 Year Weight (KG): 4.5
Type: DRILL BIT Machine Type: Drilling Tool
Material: Carburized Steel Processing Type: Heat Treatment And Machining Process
Use: Well Drilling Color: Required
Application: Coal Mining,Quarry Drilling,DTH Drilling Advantage: Long Service Life
Product Name: Down The Hole (DTH) Bits Air Compressor: High Air Pressure DTH Bits

Product Description



sollroc has been manufacturing DTH bits for several years, allowing us to develop bits suitable for a range of drilling applications.



We custom make DTH bits that are suited to drilling for Oil & Gas, Geo-Thermal & Waterwell, Construction, Horizontal Directional Drilling as well as Mining.





Technical parameters





For 3" hammer
DTH bits shank		 Bit Dia. No. Air Holes Gauge
Buttons		 Front
Buttons		 Weight
(Kg)		 Part No.
mm inch
           COP32
 		 85 3 11/32" 2 6×φ13 4×φ12 4.2 COP32-85
90 3 1/2" 2 6×φ14 4×φ12 4.5 COP32-90
95 3 3/4" 2 6×φ14 4×φ13 4.7 COP32-95
100 3 7/8" 2 8×φ12 6×φ12 5.0 COP32-100
105 4 1/8" 2 8×φ13 6×φ12 5.3 COP32-105





Product Features



1.ensure high quality and performance
2.Carbide grade options for long life in challenging applications
3.Face designs to maximize penetration rate and tool life
4.Optimized flushing designs to aid in cuttings removal and reduce wear





Images

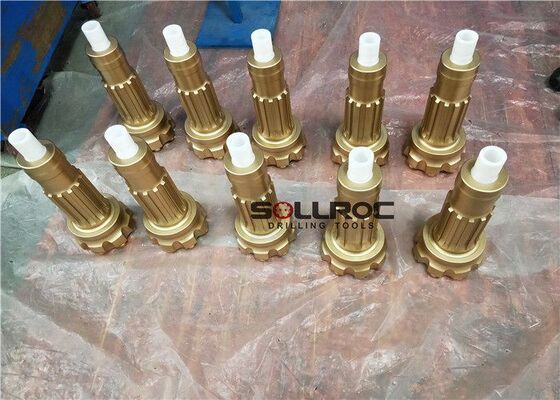

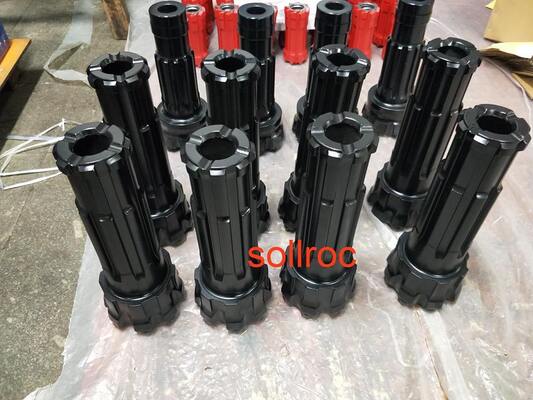

   SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING 0      SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING 2







Shipping & Package

Shipping



By Air,  By Sea  or  By express.





Package



Ply - wooden cases + Pallet



SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING 4     SOLLROC/Down the Hole/ DTH Drill Bits/ Button Bits/COP32/3 Inch Dth Bit for MINING 6
