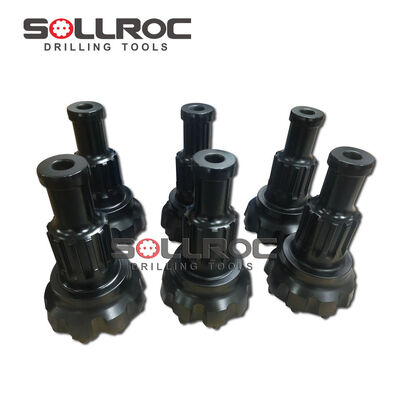

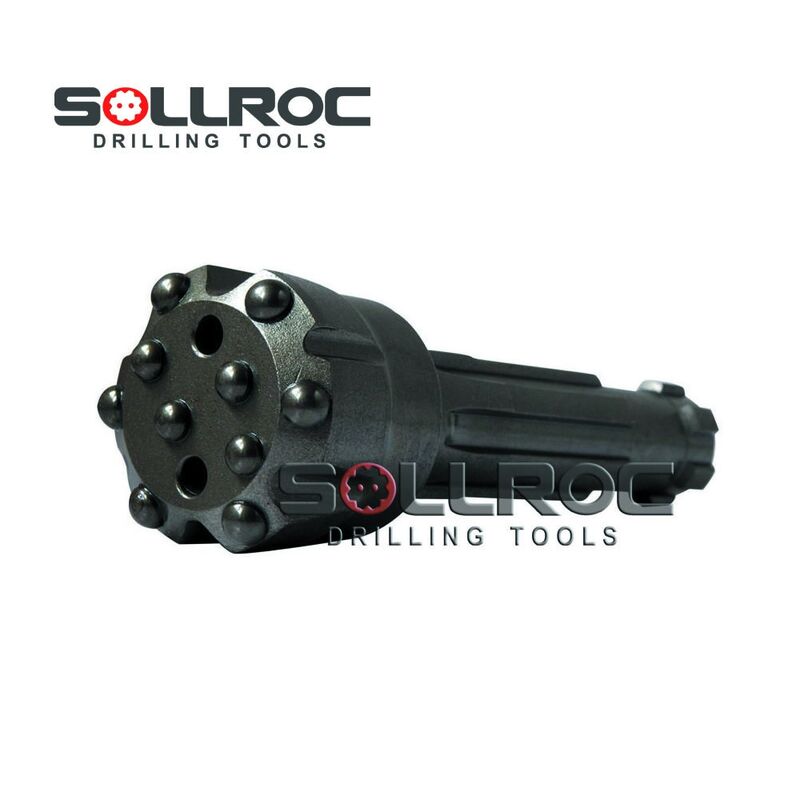

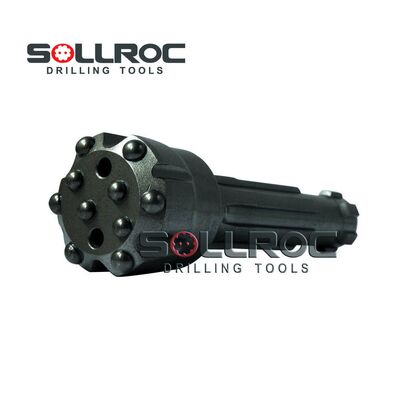

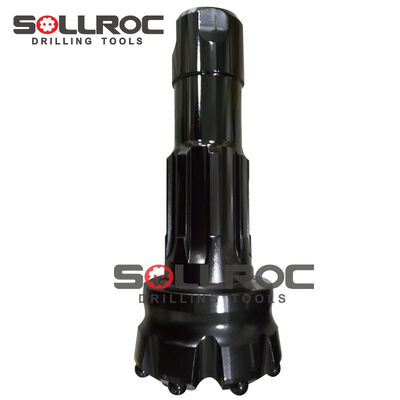

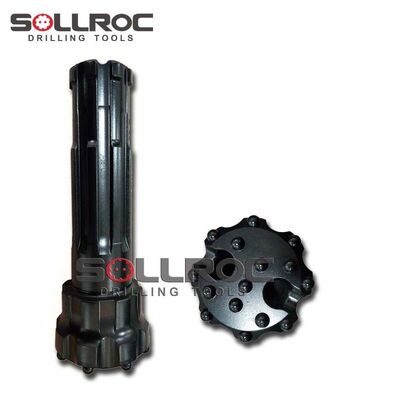

4''-110mm Down The Hole dth drill bit for mining

4''-110mm Down The Hole dth drill bit for mining
4''-110mm Down The Hole dth drill bit for mining 4''-110mm Down The Hole dth drill bit for mining 4''-110mm Down The Hole dth drill bit for mining 4''-110mm Down The Hole dth drill bit for mining 4''-110mm Down The Hole dth drill bit for mining 4''-110mm Down The Hole dth drill bit for mining

Large Image :  4''-110mm Down The Hole dth drill bit for mining

Product Details:
Place of Origin: Hunan, China
Brand Name: SOLLROC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $100
Contact Now

4''-110mm Down The Hole dth drill bit for mining

Description
Warranty: 1 Year Weight (KG): 7.8
Type: DRILL BIT Machine Type: Drilling Tool
Material: Carburized Steel Processing Type: Heat Treatment And Machining Process
Use: Well Drilling Product Name: Down The Hole (DTH) Bits
Size: 4 5/16'' Diameter: 110mm
Advantage: High Performance Flushing Holes: 2*18mm
Buttons: 7*14mm+6*13mm Air Compressor: High Air Pressure DTH Bits
Color: Required Application: Coal Mining,Quarry Drilling,DTH Drilling

Product Description


sollroc could supply the QL/DHD/Mission/SD Shank DTH Drill Bit with cemented carbide buttons have very good wear-resistant. Buttons are strong in the mining process and could meet requirements of various rocks , and the service lifetime is very long.
DTH Drill Bit is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain.


Technical parameters
      Bit diameter

         Flushing holes
       No.*Button Dia.mm

             No.*Button Dia.mm

      Weight
         (Kg)

    mm     inch   Gauge Buttons   Front Buttons
    110    4 5/16''               2 * 18          7*14           6*13          7.8


Images


4''-110mm Down The Hole dth drill bit for mining 0    4''-110mm Down The Hole dth drill bit for mining 2


Shipping & Package

Shipping

By Air,  By Sea  or  By express.


Package

Ply - wooden cases + Pallet

4''-110mm Down The Hole dth drill bit for mining 4     4''-110mm Down The Hole dth drill bit for mining 6



Related Products

4''-110mm Down The Hole dth drill bit for mining 8       4''-110mm Down The Hole dth drill bit for mining 10      4''-110mm Down The Hole dth drill bit for mining 12
      DTH hammers >>                                     DTH bits >>                                   RC hammers >>


4''-110mm Down The Hole dth drill bit for mining 14    4''-110mm Down The Hole dth drill bit for mining 16    4''-110mm Down The Hole dth drill bit for mining 18
   RC bits >>                                                     Button bits >>                                  ODEX system >>
